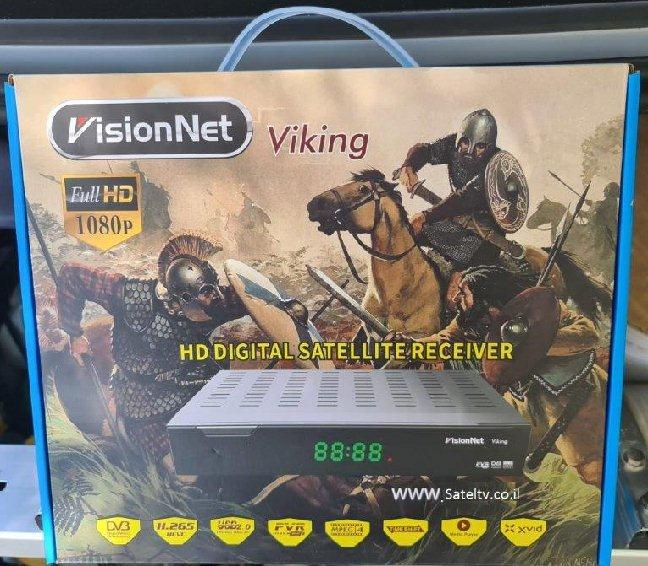

VisionNet Viking S2/T2&C + IR Extender
Digital HD Satellite Receiver ,RF Output
Summary Introduction :
Main Chip ALI3526 Product definition HD COMBO
Standby Power Consumption <0.5W
USB 2 LAN 100M
Tuner S2 + T2/C CVBS/L/R RCA YES HDMI 1 S/PDIF Coaxial IR External YES
LED Front panel Size 220mm
Front Panel :
Lock LED, standby LED(contain working LED),4 digtal LED
1 USB 7 Button(Power, menu, ok, ch-, ch+, vol-, vol+)
Rear panel :
IR IN HDMI RCA S/PDIF USB ETHERNET S2 + T2/C

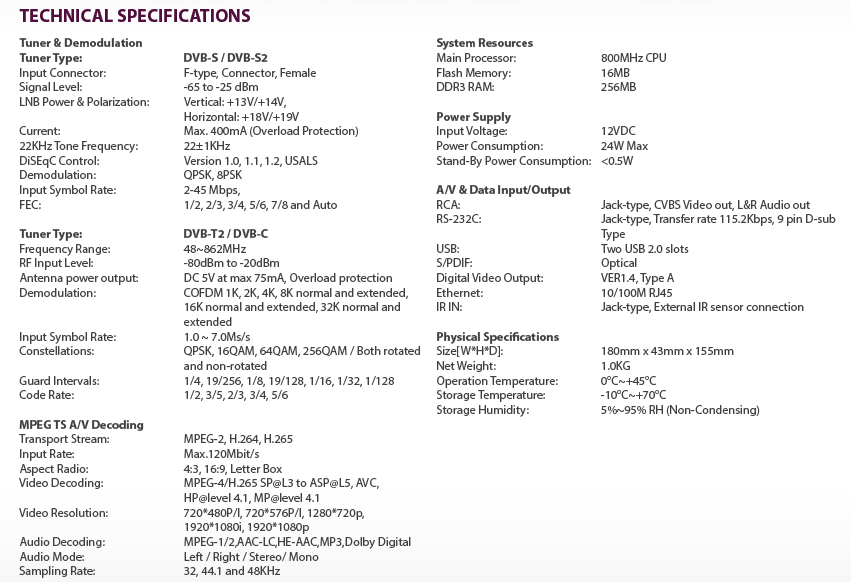

Product definition Ali HD COMBO CI Hardware Chip Vendor ALI3526 Processor frequency Main CPU: 594
MHz, 2nd CPU: 396Mhz Operation system TDS RAM DDRIII 16bit 256MBx1 Flash Serial Flash 8MB x 1 Video
Interface HDMI, CVBS Audio Interface Digital Audio Output by SPDIF, RCA Audio Decoding MPEG-1/2,AAC-
LC,HE-AAC,MP3,Dolby Digital plus Video Decoding MPEG-4/H.264/H.265 SP@L3 to ASP@L5, AVC, HP@level
4.1, MP@level 4.1 Standby Power Consumption
*****************************************************
- Cost - 350 ILS. including VAT (Not including bracket)

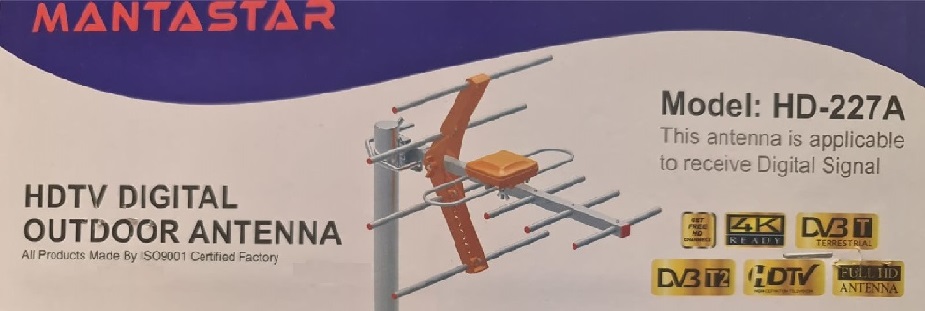

- Bracket for Idan Plus Antenna - 100 ILS. including VAT - Pipe:ф25xT1.0,Base:102mm*44mm, Length: 376.5mm, Galvanize
- Signal splitter (1 to 3) for Idan Plus Antenna - 100 ILS. including VAT
* As of today all major Israeli channels included - 11,12,13,14,23,24,9
*********************************************************
חדש*
*********************************************************
*********************************************************
